Fubix Joint Machine

Micro-Injection and Consolidation Systems

FUBIX® – It is suitable for multi-purpose, and it is light, compact and easy to use system.

Especially suitable for filling all joints types on outer facades in brick, stone, rock, etc. For spraying, injection, micro-injection and pumping any kind of cement compounds or premixed mortars, glues, resins, polyurethane, etc…

System has a remote control to calibrate injection speed electronically and one reverse pumping mechanism.

When micro-injection is asked for, injection pressure can control easily with nozzle attached with sensitive manometer. It can be controlled with a system attached to operator’s wrist.

When it is requested at consolidation works, system which has pipes with 20 mm diameter and flat or round nozzle and 9 lt capacity cone, is used.

With that system, joint filter material can be reached to 5mt easily.

TECHNICAL SPECIFICATION:

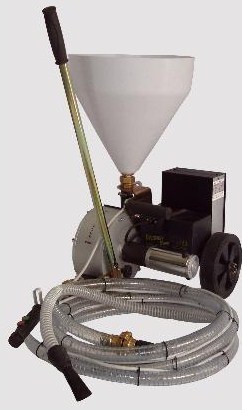

FUBIX – P 60

• Motor C.C. 65W

• Powered by 12V 12A

• Voltage 220V – 12V

• Remote control with speed regulator

• Start, stop and reverse

• Capacity of standard hopper LT. 13

• Capacity 0/360 LT/h

• Calibrated for inert particles from 0 to 5 mm

• Height cm. 37

• Length cm. 40

• Width cm. 40

• Weigth kg. 15

FUBIX – P 80

• Motor C.C. 600W

• Powered by 24V

• Voltage 220V – 24V

• Remote control with speed regulator

• Start, stop and reverse

• Capacity of standard hopper LT. 20

• Capacity 0/700 LT/h

• Calibrated for inert particles from 0 to 5 mm

• Height cm. 37

• Length cm. 40

• Width cm. 50

• Weigth kg. 20

FUBIX – P100

• Motor C.C. 65W

• Powered by 12V 12A

• Voltage 220V – 12V

• Remote control with speed regulator

• Start, stop and reverse

• Capacity of standard hopper LT. 13

• Capacity 0/180 LT/h

• Calibrated for inert particles from 0 to 5 mm

• Height cm. 37

• Length cm. 40

• Width cm. 40

• Weigth kg. 14
